Ballistic Glass Clad Laminates

Product

Threat

Thickness

Lbs/Sq.Ft.

PDF

PAS002 L/S .357 JSP, 9mm FMJ, .44 SWC (3 Shots) 1.056″ 11.64 PDF
PAS002 .357 JSP, 9mm FMJ, .44 SWC (3 Shots) .818 8.99 PDF
PAS003 L/S .44 FMJ, 7.62 x 25 LCSJ (Tokarev)(3 Shots) 1.181″ 13.55 PDF
PAS003 .44 FMJ, 7.62 x 25 LCSJ (Tokarev)(3 Shots) .943 10.90 PDF
PAS004 L/S 7.62 M80 Ball, 30.06 PSP, 308 FMJ (1 Shot)7.62 x 39 SC (123) (AK-47) (2 Shots) 1.313″ 14.33 PDF
PAS004 7.62 M80 Ball, 30.06 PSP, 308 FMJ (1 Shot)7.62 x 39 SC (123) (AK-47) (2 Shots) 1.075 11.68 PDF
PAS005 L/S 5.56 x 45 (223) M193 (3 Shots)7.62 x 39 SC (123) (3 Shots) 1.588 17.49 PDF
PAS005 5.56 x 45 (223) M193 (3 Shots)7.62 x 39 SC (123) (3 Shots) 1.350 14.78 PDF
PAS005MH L/S 7.62 M80 Ball, 30.06 PSP (3 Shots)7.62 x 39 SC (123) – SKS (3 Shots)5.56 x 45 M855 (AP) (1 Shot)5.56 x 45 (223) PSP (5 Shots) 1.713″ 19.34 PDF
PAS005MH 7.62 M80 Ball, 30.06 PSP (3 Shots)7.62 x 39 SC (123) – SKS (3 Shots)5.56 x 45 M855 (AP) (1 Shot)5.56 x 45 (223) PSP (5 Shots) 1.475 16.69 PDF
PAS007  5.56 X 45-mm, 55-grain M193 Ball (1 shot)  1.827 21.32 PDF
PAS008 L/S 30.06 AP. 308 NATO, 5.56 M193 (1 Shot) 2.513 29.36 PDF
PAS008AP 30.06 AP. 308 NATO, 5.56 M193 (1 Shot) 2.275 26.71 PDF
PAS 50 CAL BALL  50 CAL BALL, 2750 fps 3 39 PDF
PAS 50 CAL AP  50 CAL AP 1 shot 398 46 PDF
PAS 1000  3/4” U.L. 752 Listed Level I – 9mm
UH.P. White TP-0500.01 Level I – Forced Entry
 3/4”  6.4 PDF
PAS 3000 1 ¼”  U.L. 752 Listed Level 3 & 6 – 9mm Rifle  1 ¼”  10.7 PDF
PAS 3500 1 ¼”  U.L. 752 Listed Level III – 44 mag 1 ¼”  10.7 PDF
PAS 5000 1 5/8” NIJ Level – B-6 7.62 NATO Level B6 1 5/8” 19.3 PDF
PAS UL-8 2 1/8”  U.L. 752 Listed Level 8 – 7.62 Military Ball  2 1/8”  23 PDF

This extremely durable and light-weight transparent armor is available either in flat sheets, or curved and cut to fit your specific applications. Combining the hard surface of glass with the resilient toughness of polycarbonate, Patriot Armor Glass Clad systems are specially designed to defeat threats from high-powered firearms with low or no spalling. Patriot Armor Glass Laminates meet NIJ and UL standards for bullet-resistant applications.

We also manufacture laminated to meet your specific threat or standards specifications. Please call with your requirements.

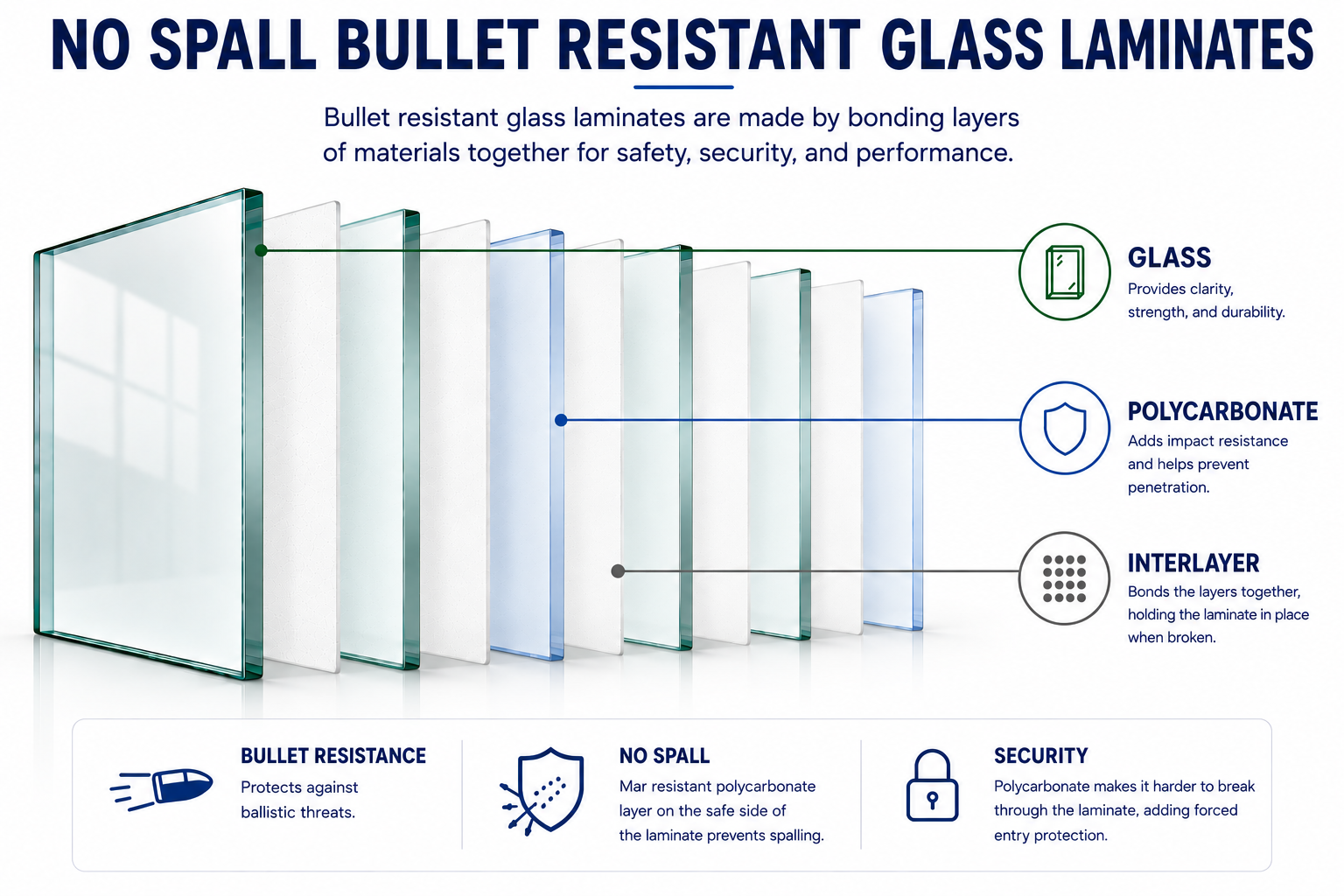

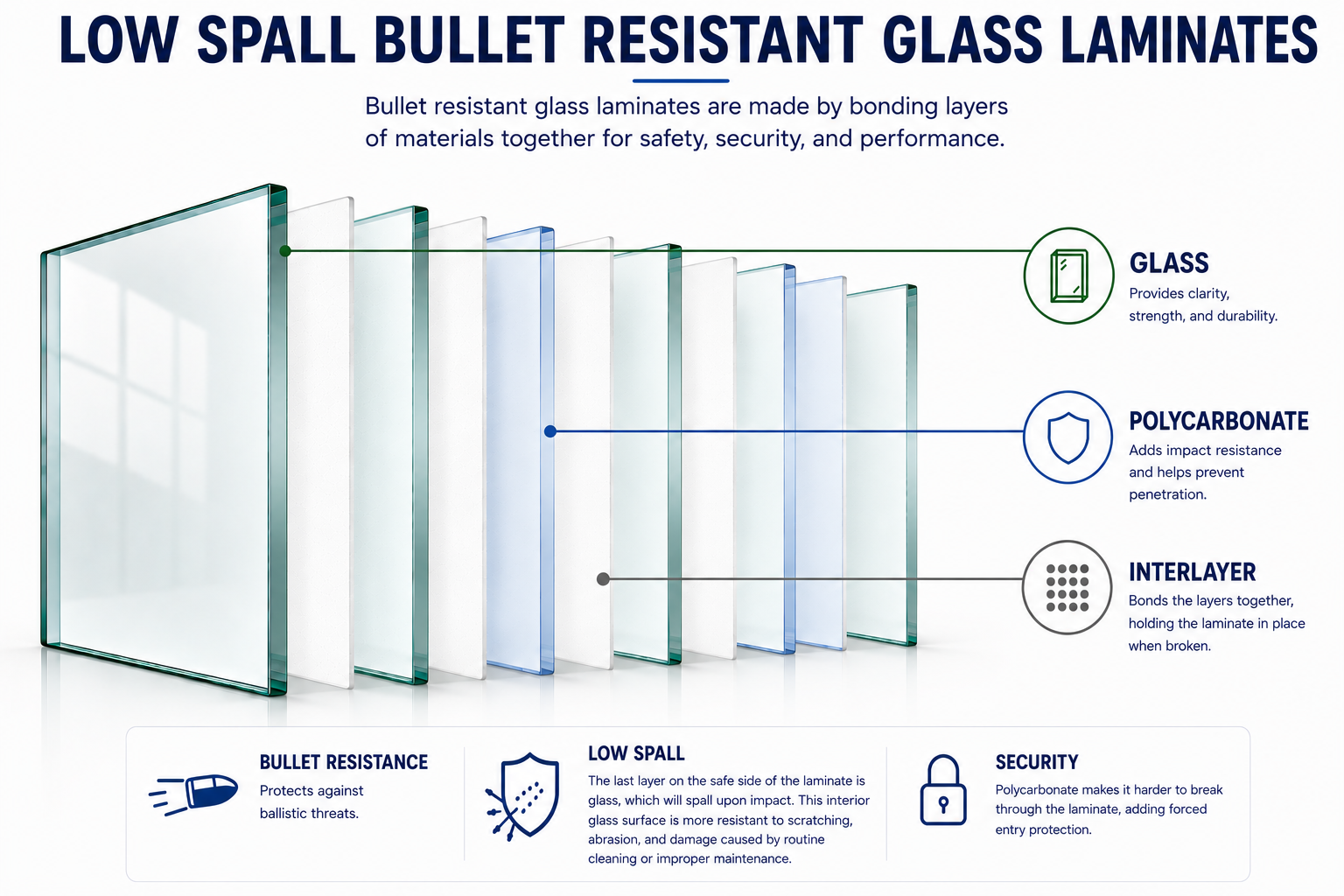

schematic_ballistic_glass_clad_laminate

Available Surfaces and Colors:

  • Tempered
  • Heat Strengthened
  • Annealed
  • Chemically Strengthened
  • Grey, Green or Bronze Tints
We can provide a variety of laminates to stop your specified threat level.
