Patriot Armor Security Glass Clad Laminates provide long-lasting protection against moderate ballistic and forced entry threats. The durability and versatility of these laminates make them a perfect choice for correctional facilities, courthouses, government buildings and corporate security applications. By altering thickness and composition, such as adding layers of glass or polycarbonate, Patriot Armor Security Glass Clad Laminates can be customized to meet your requirements for specific threat levels.

We also manufacture laminates to meet your specific threat or standards specifications. Please call with your requirements.

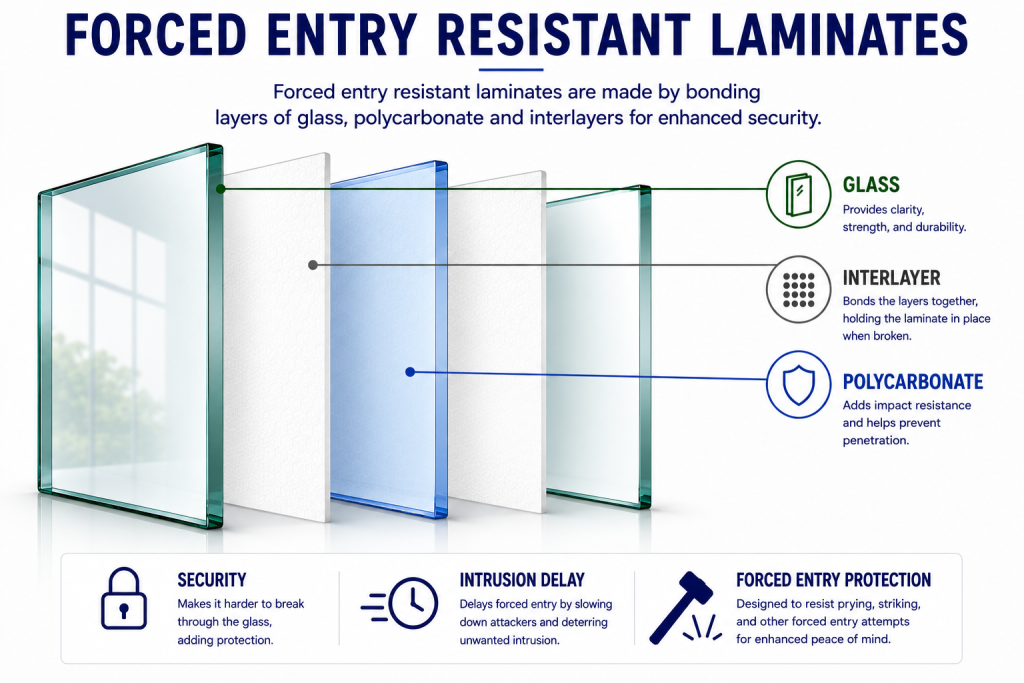

schematic_security_glass_clad_laminate

Available Surfaces and Colors:

  • Tempered
  • Heat Strengthened
  • Annealed
  • Chemically Strengthened
  • Clear, Grey, Green or Bronze Tints

Security Glass Clad Laminates

Product

Threat

Thickness

Lbs/Sq.Ft.

PDF

GCP 375 Forced Entry .375″ 4.00 PDF
GCP 450 .38 Special, Forced Entry .450″ 4.40 PDF
GCP 530 .38 Special, Forced Entry .530″ 4.79 PDF
GCP 600 .38 Special, Forced Entry .600″ 5.18 PDF
GCP 625 9 mm,Forced Entry .625″ 5.28 PDF
GCP 725 9 mm,Forced Entry .725″ 5.96 PDF
GCP 750 9 mm, .357 MAG, Forced Entry, 30 Minute Physical Attack .750″ 6.06 PDF
GCP 875 .357 MAG, Forced Entry, 60 Minute Physical Attack .875″ 7.14 PDF
GCP 960 .357 MAG, Forced Entry, 60 Minute Physical Attack .960″ 7.30 PDF
GCP 1000 .357 MAG, Forced Entry, 60 Minute Physical Attack 1.000″ 9.33 PDF
GCP 1250 .44. MAG, Forced Entry, 60 Minute Physical Attack 1.250″ 10.50 PDF
9/16” Hurricane Laminated Safety Glass
U.L. 972 Burglary Resistant Glazing
9/16” 6.5 PDF
9/16”  Lami Laminated Safety Glass
U.L. 972 Burglary Resistant Glazing
9/16”  6.83 PDF
GCP 800 13/16” 357 mag (Low Spall)
Level III – 30 minute Physical Attack
13/16”  6.3 PDF
