Anatomy of Bullet Resistant Glass: Understanding Laminate Layers

Bullet resistant glass is an engineered laminate made from multiple materials that work together during ballistic impact. This illustration shows how glass, polycarbonate, and interlayers are arranged from the threat side to the protected side and explains the function of each layer.

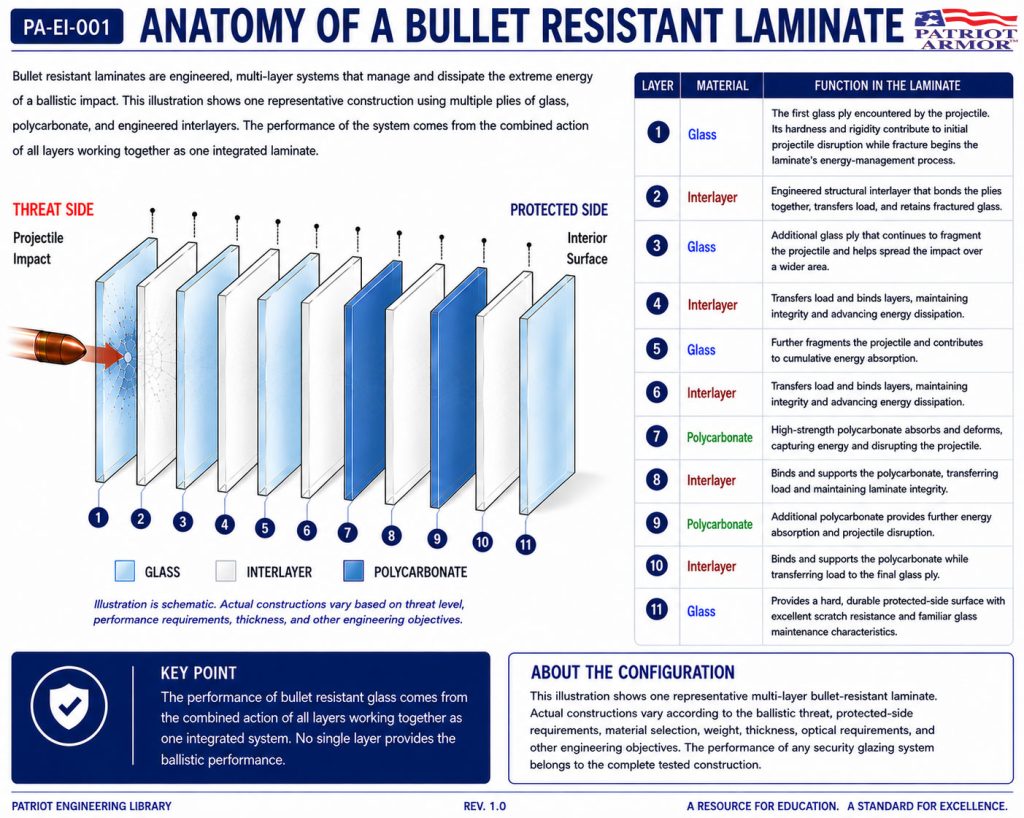

A representative bullet resistant glass laminate showing how glass, polycarbonate, and engineered interlayers are arranged from the threat side to the protected side.

Understanding the Layers in Bullet Resistant Glass

Bullet resistant glass is not a single sheet of unusually thick glass. It is an engineered laminate in which multiple transparent materials are bonded together so they can respond as one integrated construction during ballistic impact.

The illustration above shows one representative laminate architecture. From the threat side to the protected side, the construction combines glass, engineered interlayers, and polycarbonate. Each material contributes different properties, while the ballistic performance belongs to the complete tested construction rather than to any individual layer.

What Each Material Contributes

Glass

Glass provides hardness, rigidity, optical stability, and fracture behavior that contribute to projectile disruption and load distribution within the laminate.

Interlayers

Interlayers bond adjacent plies together, transfer loads between materials, maintain layer engagement, and help retain fractured material.

Polycarbonate

Polycarbonate contributes toughness, deformation capacity, energy absorption, and resistance to penetration within the complete laminate.

Protected-Side Surface

The final exposed surface is selected according to the laminate architecture and project requirements. Its material can influence scratch resistance, cleaning, maintenance, and protected-side response.

Why the Exact Construction Matters

The layer sequence shown in PA-EI-001 is a schematic teaching example, not a universal product recipe. Actual bullet resistant glass constructions vary according to the ballistic threat, required protected-side response, overall thickness, weight, optical requirements, material compatibility, framing conditions, and other engineering objectives.

A change to one material, thickness, or position can change how the laminate behaves. For that reason, ballistic ratings and performance claims should always be tied to the specific construction and conditions represented by the applicable test.

Key Takeaway

The important question is not simply how many layers are in bullet resistant glass. The better question is what function each layer performs and how the materials work together as a complete engineered laminate.
