All Glass Laminates

Product
Threat
Thickness
Lbs/Sq.Ft.
PDF
PAS 001AG 9mm (3 Shots) 1.185″ 15.25 PDF
PAS ULI 9mm (3 Shots), UL Listed 1.28″ 16.2 PDF
PAS 002AG .357 MAG, 9mm (3 Shots) 1.40″ 17.94 PDF
PAS 003AG .44 MAG, .357 MAG, 9mm (3 Shots) 1.59″ 20.38 PDF
PAS 004AG 308, 30-06, 7.62 X 39 SC (AK 47) 5.56 X 45 M193 2.00″ 25.63 PDF
PAS 008AG 30-06 AP M2 2.40″ 29.76 PDF
Assault Glass -None- .75”  9 PDF
Whether supplied flat or curved for a specific application, Patriot Armor Laminated Glass offers the durability of traditional bullet-resistant glazing at an extremely affordable cost. These glass laminates meet NIJ and UL standards for bullet-resistant applications. We also manufacture laminated glass to meet any other standard you may require.

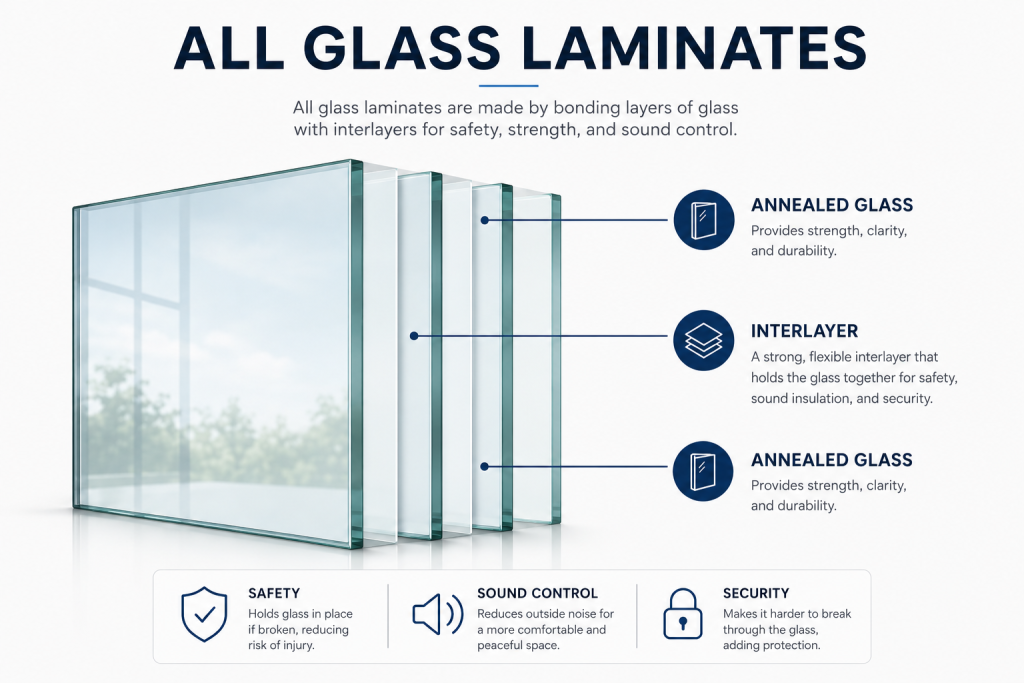

schematic_all_glass_laminateWe can provide you with the following surfaces:

  • Tempered
  • Heat Strengthened
  • Annealed
  • Chemically Strengthened
  • Grey, Green or Bronze Tints
We can provide a variety of laminates to stop your specified threat level.
